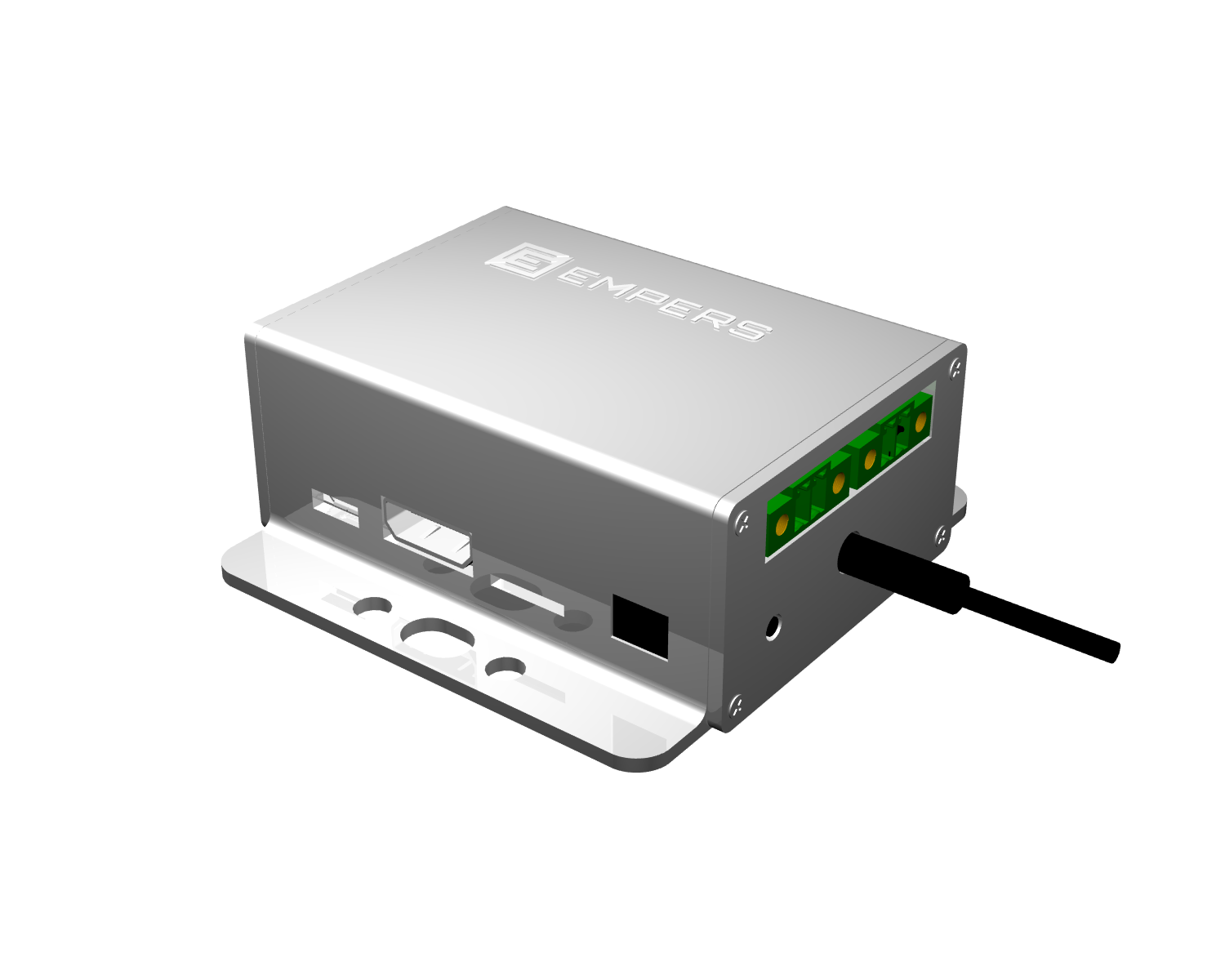

WD-120 Smart Relay
Empers Smart Relay (WD-120) is a smart choice of ON/OFF control of relay-based devices. It can be mounted in a single or multi-gang electrical box.The relay can be isolated for dry contact applications or powered to switch live loads.
Easy to control most devices with relay control
WD-120 is a versatile product for controlling electrical and electronic devices remotely from any desktop or mobile device through WiFi. It has an integrated antenna with lowpower radio transceiver. Easy to use and wider electrical appliances compatibility are the primary goals behind this product's design.
Benefits:
- Function independently without gateway
- Built-in Web interface with log database
- Co-work with other smart sensors
- Open API easy to intervene with other cloud platform
- Cost-effective
- Flexible & easy installment
Download

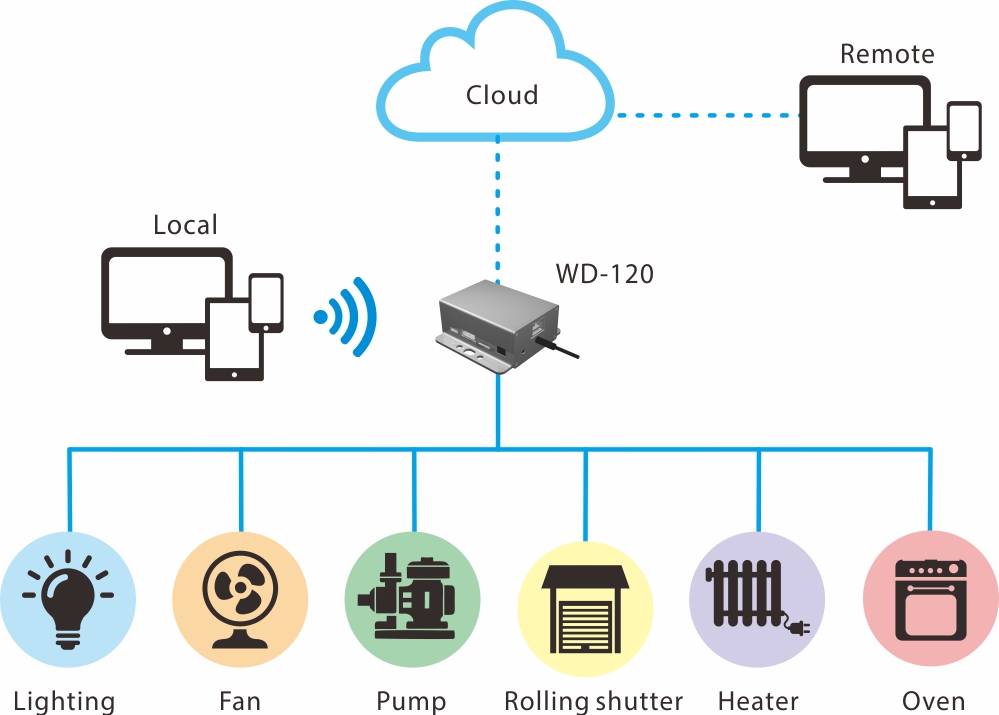

Application
| Common | |
|---|---|
| CPU | Quad-core Cortex-A7 |
| GPU | Mali400MP2 |
| Memory | 512MB DDR3 SDRAM |
| Storage | TF card (Max. 64GB) |
| WiFi | IEEE 802.11 b/g/n, build-in antenna |
| Power | DC 5V, 2A |
| Housing Material | Aluminum |
| Relay | |
| Channel | 2 |
| Voltage | AC 240V / DC 24V |
| Contact Rating | 10A 120V AC, 7A 240V AC |
| Isolation Voltage | 5 KVrms |
Ordering Number
WD-120-J
WD-120-U
WD-120-E
