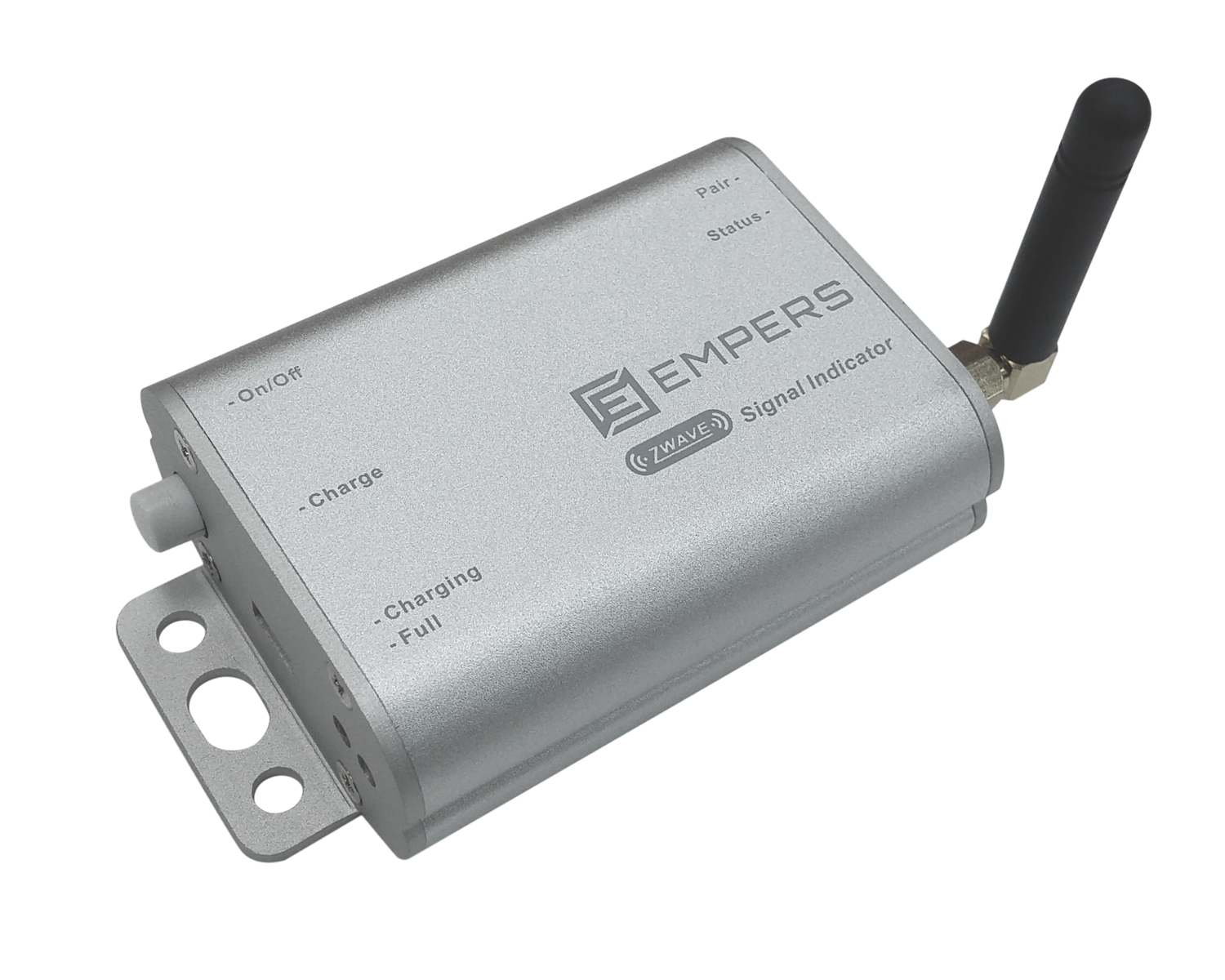

ZD-110 Signal Indicator
Empers Signal Indicator (ZD-110) is a perfect portable tool for searching for Z-Wave signal and analysing its strength. When we install z-wave devices, we are usually not sure where the best place to set them in order to get the strongest signal. Also, if there is a problem, we won’t be sure if the problem is on the sensors, the gateway, or the signal is just blocked.
Z-Wave signal strength detection

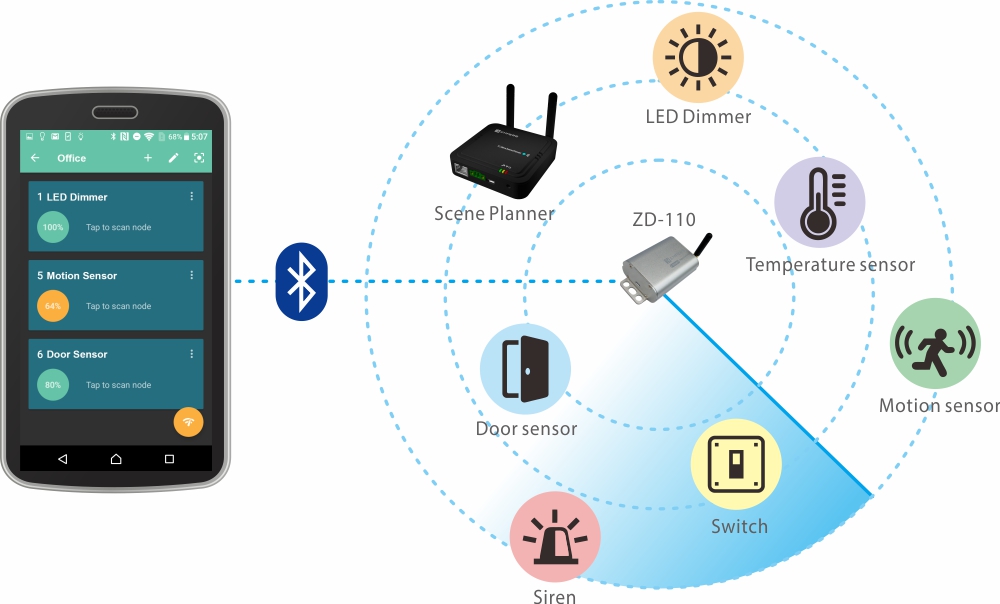

ZD-110 helps you gure out what problems might be, and from there you can decide what to do about it. How does ZD-110 work? It will scan the Z-Wave devices in a speci c range, and immediately show the strength between RSSI and the devices on the App. You can check from time to time if you nd a device is not accepting signal properly. If the signal is weak, you can move the devices to another place in order to get a better signal. A Z-Wave Signal strength detection is the rst step. Once you know that all the devices are working ne, then it is time to ensure that they stay that way.
Features:
- Allow users to detect Z-wave signals
- Help users to nd out the best place to install the gateway and sensors
- Easy to use with the App
- User friendly. The data is clearly shown in the table
- Built-in rechargeable lithium polymer battery
Download
Application
| Z-Wave | |
|---|---|
| RF Frequency | 908.42 MHZ (US), 868.42 MHz(EU), 922.5 MHz (JP) |
| Range | Up to 50m (outdoors) and 30m (indoors) |
| Bluetooth | |
| Standard | BLE 4.0 |
| Range | 10m (32ft) |
| Power | |
| Charge | Standard Micro USB |
| Battery | Lithium polymer battery (1500mAh) |
| Appearance | |
| Dimension | 94x56x27mm(LxWxH), 220 Gram |
| Housing Material | Aluminum |
| Color | Silver |
| System Requirement | |
| Mobile device | Android 4.0 and above |
Ordering Number
ZD-110-J
ZD-110-U
ZD-110-E
