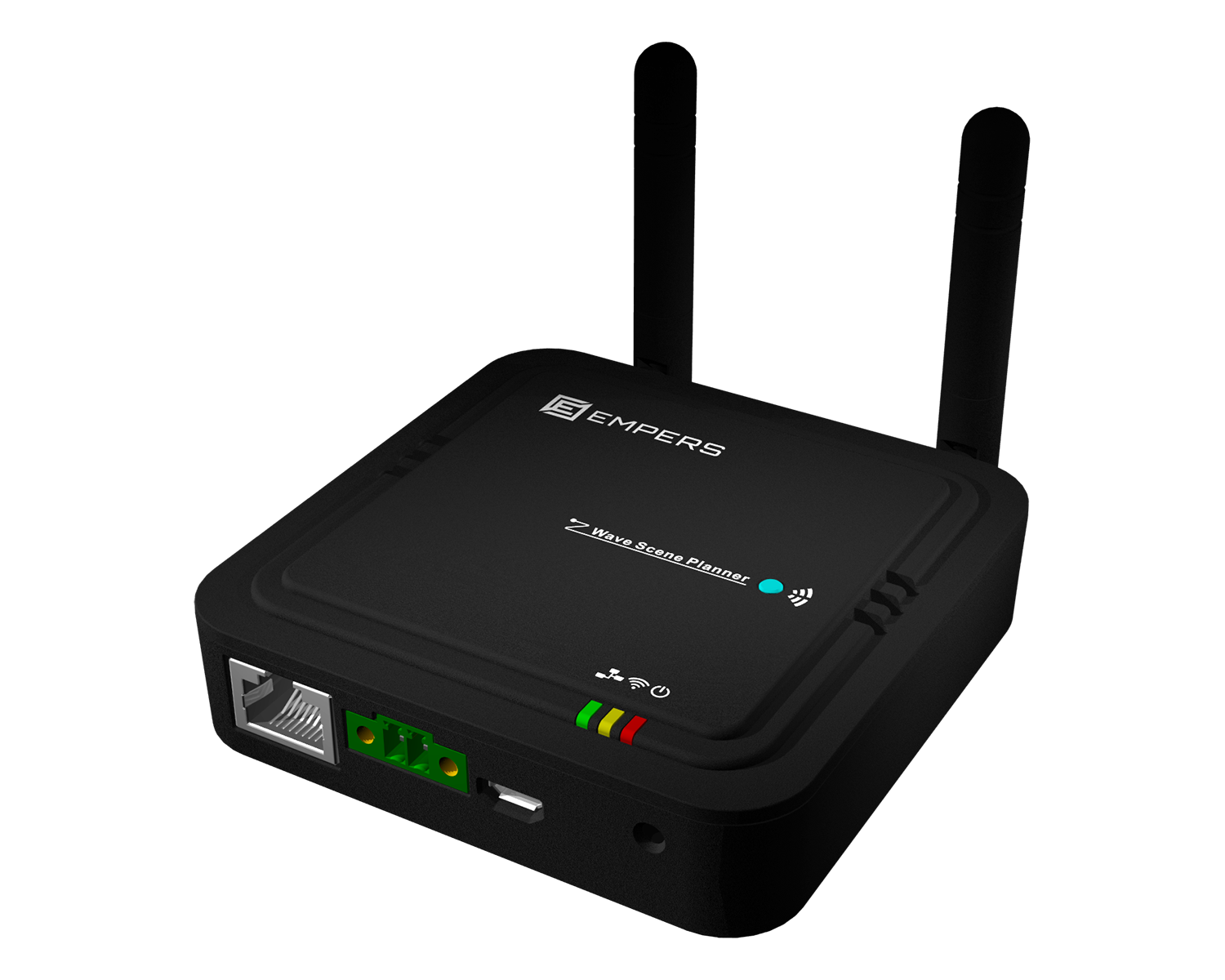

TP-301 Scene Planner

Z-Wave Scene Planner is a fully Z-Wave equipped internet Gateway used for home/ office/factory automation and remote control. Z-Wave Scene Planner integrates multiple complicated wireless control and internet protocols into one simple PnP device.

Z-Wave and WiFi network

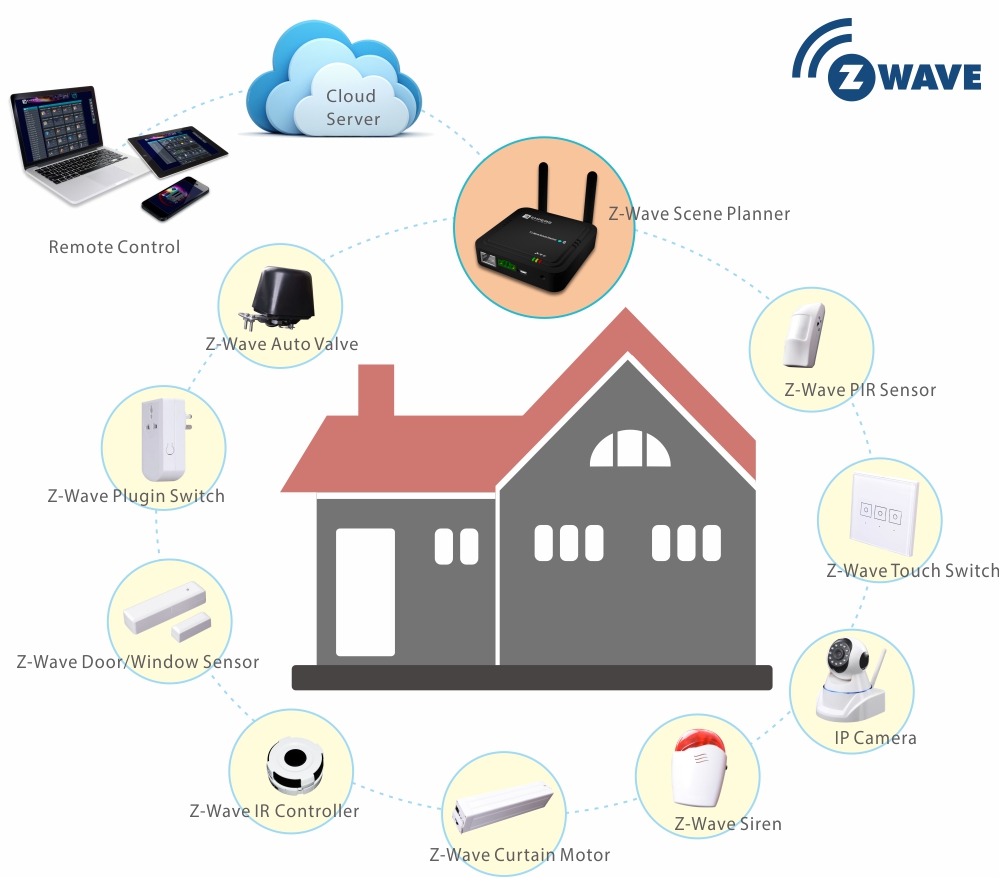

Z-Wave Scene Planner gives the greatest flexibility to create the association between sensors and devices to satisfy all your needs for automation. It can communicate with each other through the wireless protocol within one network. This means that you can build up a complex system flawlessly for your application demand.

Benefits:

  • Distributed framework design
  • Bridge between Z-Wave and WiFi network
  • Remotely control Z-Wave smart home system
  • Support IP camera
  • Support NAT traversal
  • Easy to build up and extend systems within one WiFi network
  • Simple to create your individual scenes
  • Communication and co-operation between each scene planner

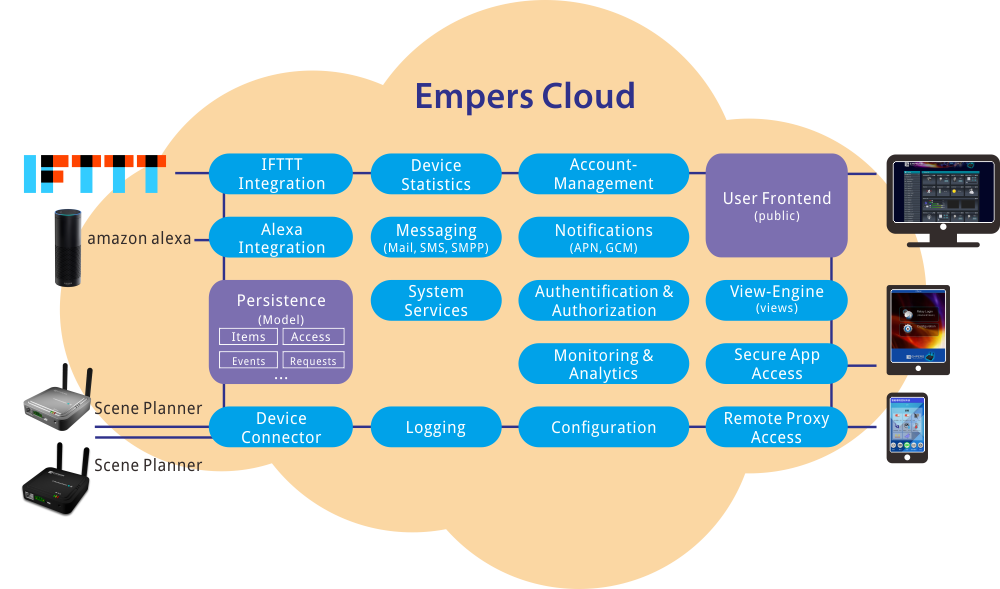

  • Collect and upload data to cloud server

Download

Application


Specification

Core
CPU Clock Rate 400MHz
DDR2 SDRAM 64M Bytes
Flash 8M Bytes
Wireless
Wi-Fi Standard IEEE 802.11 b/g/n Wireless Local Area Networks
Wi-Fi Frequency Range 2.4G~2.5GHz
Measured Data Rates 1 Mbps, 2 Mbps, 5.5 Mbps, 11 Mbps in 802.11b Modes
6Mbps, 36Mbps, 48Mbps, 54Mbps in 802.11g Modes
MCS0~MCS7 in both HT20 and HT40 in 802.11n Modes
(up to 150Mbps)
Ethernet
Interface RJ-45
Standard IEEE802.3
Speed 10/100Mbps
LAN For Bridge or wireless ISP Mode
WAN For Gateway Mode
Z-Wave®
RF Frequency 908.42 MHZ (US), 868.42 MHz(EU), 922.5 MHz (JP)
Data Rate 9.6/40/100kbit/s
Output Power -21...+2.5 dBm
High Sensitivity (Typical Values) -99 dBm@9.6 kbit/s, -97 dBm@40 kbit/s, -93 dBm@100 kbit/s
LED Indicator Display
Red Power
Green LAN/WAN
Blue Z-Wave®
Micro SD Slot (Option)
TF Card Support up to Ver. 2.0 (SDHC)
Compatible with er. 3.0 (SDXC)
Power
Micro USB 5VDC Input
Power Adapter AC 100-240V Input, DC 5V/2.5A Output
Terminal 9~30VDC Input
Power Consumption Normal Mode 1.70W
Housing
Material ABS (Plastic)
Dimension 87(L) x 87(W) x 20(H) mm
Weight 75g
