ZNG100 Z-Wave Network Gateway MQTT Local Broker
A Bridge for KNX/PLC to Wireless, integrate to wireless Voice Call help System
Benefits:
- Z-Wave connection to various Z-Wave devices
- MQTT broker
- HTTP server
- WebSockets server
- CoAP server
- HTTP & MQTT protocol API
- The status from devices & sensors been triggered will transmit to PLC system
- Publish the value of devices & sensors every hour to PLC system
Download
Application

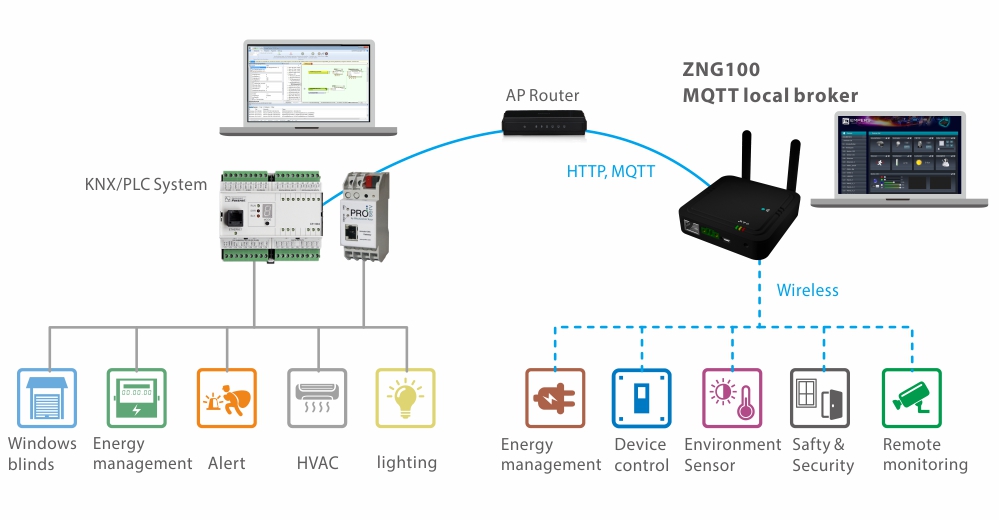

TECO PLC system integrated with ZNG100
| Main | |
|---|---|
| CPU | CPU 400MHz 64M SDRAM 8M Flash |
| Wireless | IEEE 802.11 b/g/n wireless local area networks |
| Ethernet | RJ-45 interface IEEE802.3 10/100Mbps |
| Z-Wave® | 908.42 MHZ (US), 868.42 MHz(EU), 922.5 MHz (JP) |
| LED Indicator Display | Red: Power Green: LAN/WAN Blue: Z-Wave® |
| Micro SD Slot (Option) | TF card support SDHC/SDXC |
| Power | micro USB 5V/2.5A Terminal 9~30VDC |
| Power Consumption | 1.47W |
| Housing | ABS (Plastic) |
| Dimension | 87(L) x 87(W) x 20(H) mm |
| Weight | 75g |
Ordering Number
ZNG100-US
ZNG100-EU
ZNG100-JP
