ZEM110 Z-Wave Embedded Gateway Module

Benefits:

  • Compact size
  • Z-Wave communication protocols
  • Serial port connection to main system
  • Support Z-Wave encryption
  • Plug and play; easy integration
  • API provided

Download

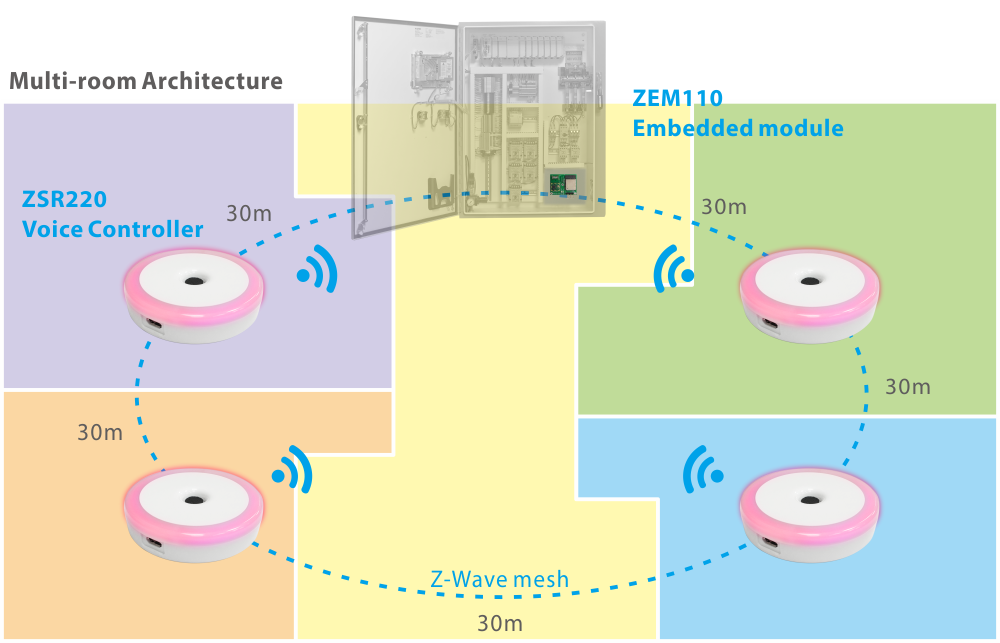

Application

Specification

Main
CPU Dual-core Xtensa 32-bit LX6 MCU,
Ultra low power co-processor
Memory ROM: 448 KiB, SRAM: 512 KiB
RTC SRAM: 8 KiB, eFuse: 1 Kibit
Embedded flash: 4 MiB, External flash
Wireless Z-Wave 908.42 MHZ (US), 868.42 MHz(EU), 922.5 MHz (JP)
Interface MHz(EU), 922.5 MHz (JP)
Baud rate: 115200bps, N, 8, 1
Security Z-Wave encryption
Temperature Operation: 10~60°C, storage: -40~85°C
Dimension 40(L) x 30(W) x 10(H) mm

Ordering Number

ZEM110-US
ZEM110-EU
ZEM110-JP
