ZW101 Z-Wave Smart Valve

Water valve, electric valve arm, gas valve

Benefits:

  • Cut the water supply automatically if a leak or flood is detected (if associated with a flood detector)
  • Cutting off the gas supply if a leak is detected (if associated with a gas detector)
  • Z-Wave repeater function
  • Manual activation in case of power failure
  • Installs on a standard 1/4 valve diameter pipe turn 3/4"
  • Can be used as an irrigation device

Download

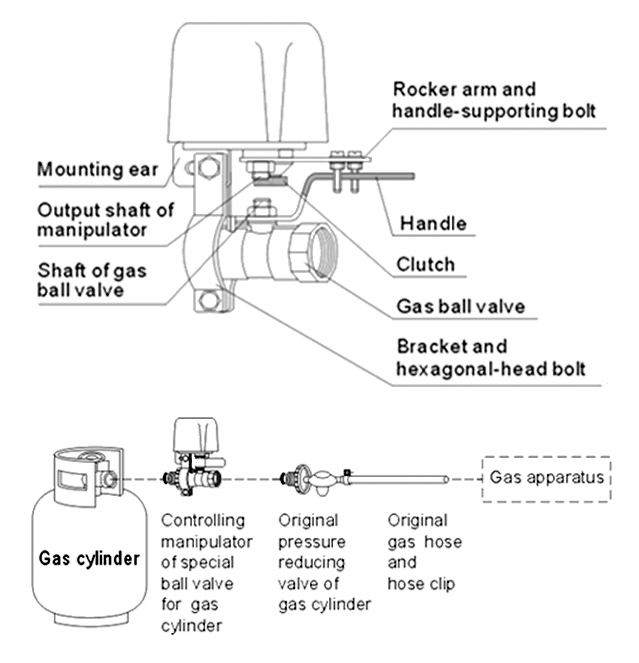

Application

Specification

Main
Rated voltage 12V/1A
Communication technology Z-Wave plus
Communication frequency 908.42 MHZ (US), 868.42 MHz(EU)
Wireless range (sight of line) 30M
Valve pressure 1.6 Mpa
Valve size 1/2”, 3/4”, 1”, 1.25”, 1.5”
Close time 5~10 seconds
Open time 5~10 seconds
Torque ABS (Plastic)
Dimension 30~60 kg.cm
Accessories 12V/1A power adaptor, hardware accessories

Ordering Number

ZW101-US
ZW101-EU
